7Cs Analyzer

IHO-compliant validation, built for modern chart production workflows.

Contact Sales

Confident Validation at Every Stage of Chart Production

7Cs Analyzer is a desktop application for validating S-57 and S-100 nautical chart datasets. It gives hydrographic offices and data producers the assurance that their datasets fully comply with the relevant IHO standards before distribution.

The application integrates seamlessly with the S-100 Data Management and Validation System (SDMS), which provides efficient workflow management across the entire data validation process. Built on the latest Nautilus ECDIS Kernel technology from Teledyne 7Cs, Analyzer brings the depth and reliability of that rendering and data-handling engine directly into the production environment.

For organisations seeking greater automation, the 7Cs Analyzer Service API makes it possible to embed the validation engine directly into existing S-57 and S-10x processing workflows via a REST API — enabling faster throughput and easier integration without compromising on compliance.

Image: 7Cs Analyzer desktop application

Key Features and Capabilities of 7Cs Analyzer

Validation of S-57 and S-101 nautical chart products against current IHO standards
S-101 / S-102 cross-product validation for multi-layer quality assurance
Import and visualization of S-104 and S-111 datasets
Comprehensive workflow management via integration with the S-100 Data Management System (SDMS)
Available as a REST API for automation and straightforward integration into existing production pipelines
Compliant with the latest edition of IHO S-58 ENC Validation Checks
Compliant with Recommended Inland ENC Validation Checks
Advanced editor for user-defined custom checks, including the ability to define checks to ignore
Export of validation results in shapefile format for use in third-party production software
Verified against the IHO S-58 Critical Test Datasets — all test cases passed
Horizontal-Vertical Consistency Module for additional quality assurance
Sophisticated display module for detailed, in-depth error review

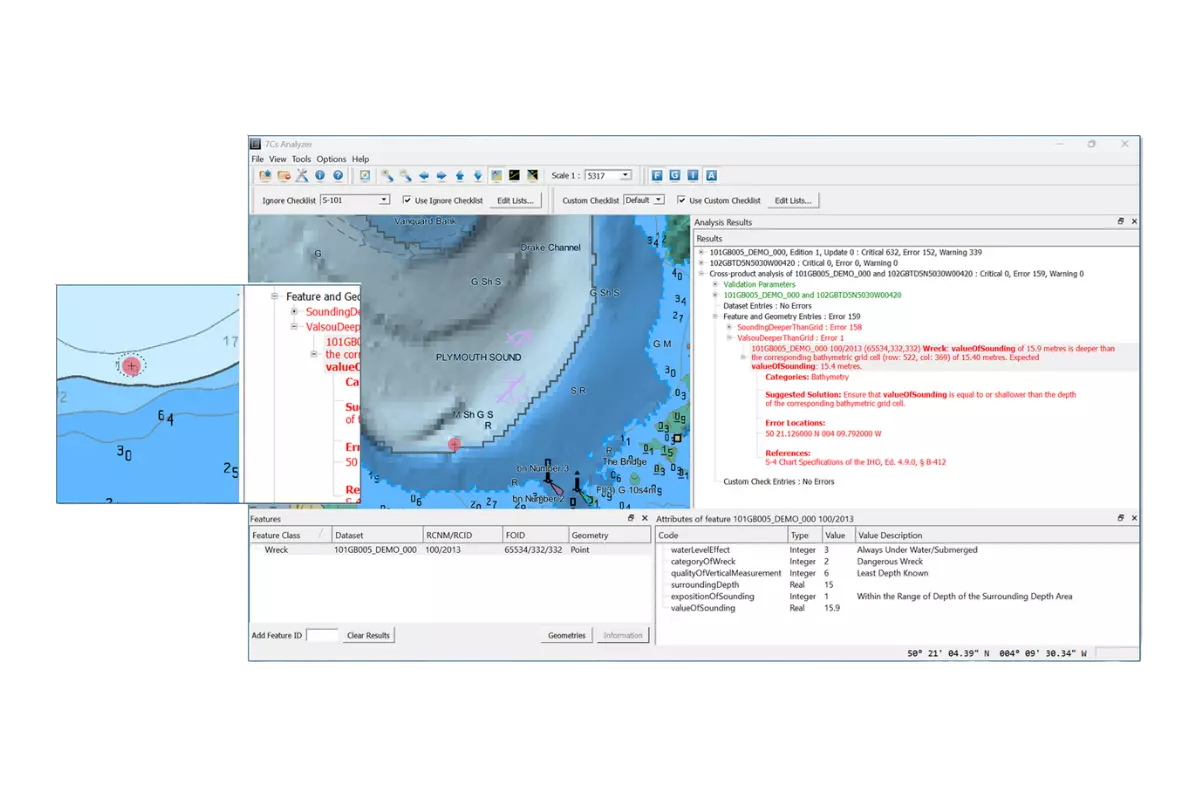

Screenshot of S-101 / S-102 cross-product validation

Image: S-101 / S-102 cross-product validation

Supported Standards and Specifications

7Cs Analyzer supports a broad and current set of IHO standards and product specifications, including:

IHO S-100 Universal Hydrographic Data Model (Edition 5.2.0, June 2024)
IHO Publication S-101 Editions 1.1.0, 1.2.0 and 2.0.0
IHO Publication S-102 Editions 2.1.0, 2.2.0, 3.0.0
IHO S-57 Transfer Standard for Digital Hydrographic Data, Edition 3.1
S-57 ENC Product Specification, Edition 2.0
S-65 Annex A, High Density (HD) ENC Production and Maintenance Guidance (Edition 1.1.0, July 2024)
S-57 Appendix B.1 Annex A — Use of the Object Catalogue for ENC, Edition 4.4.0
IHO S-58 ENC Validation Checks, Edition 8.0.0 (June 2024)
Product Specifications for Inland ENCs, Editions 2.1 through 2.5
Recommended Inland ENC Validation Checks 2.4 and 2.5
bENC / bIENC 1.0
AML 1.0, 2.1 and 3.0

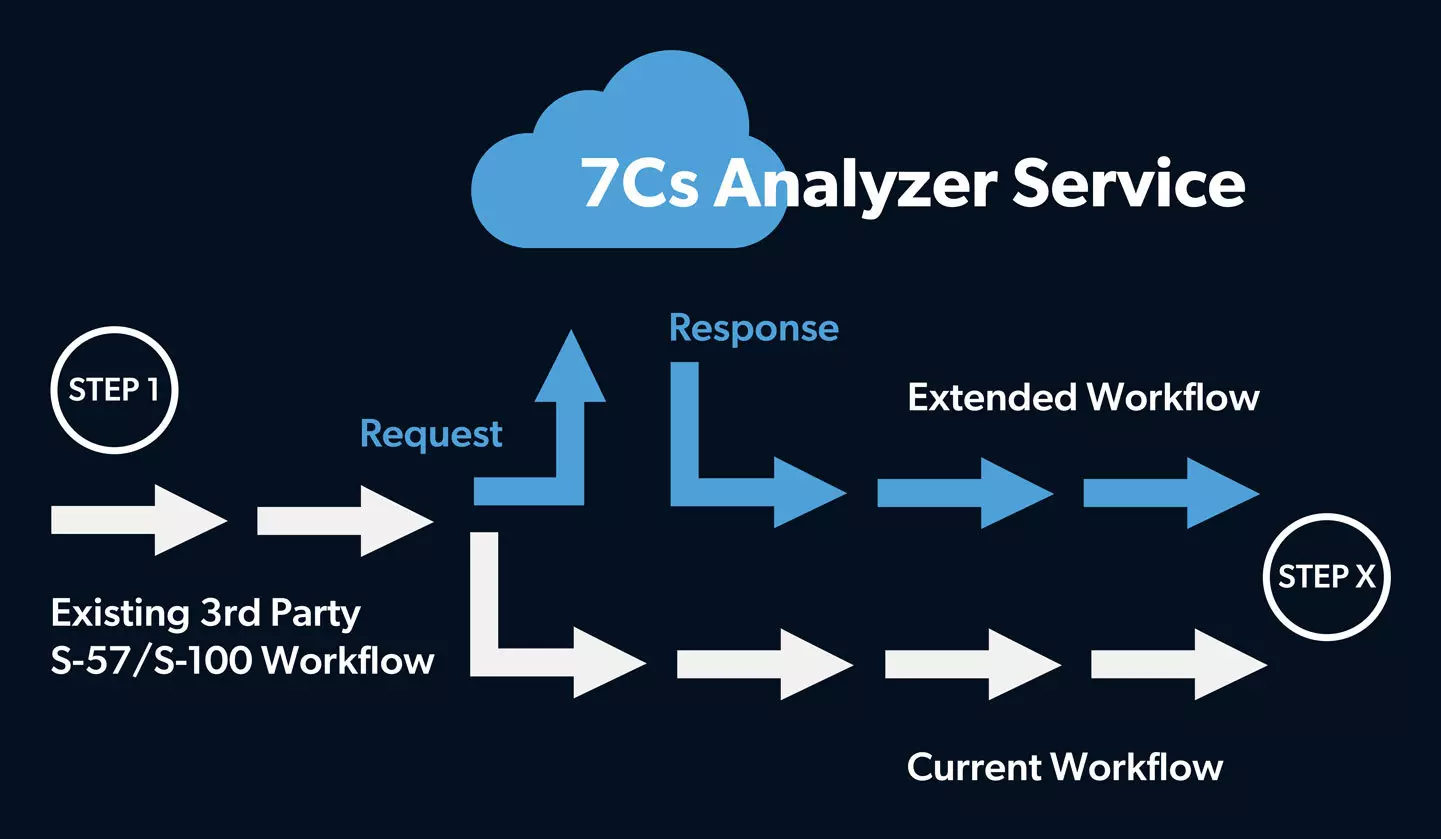

Image: Integration of the 7Cs Analyzer Service API into an existing workflow
