Simplify decision-making by using the Engineering Analysis Module, the scalable and interoperable enterprise solution for infrastructure management based on CSAR datasets. Effectively manage navigation channels, waterways, and ports, including vertical walls, comparing to models and performing analysis.
Discover these and other tools, including profiles, differences, and linear referencing, all designed to provide the best engineering and analysis experience.
The Engineering Analysis Module can be licensed with the Bathy DataBASE suite or the standalone BASE Editor application.
Vertical and inclined modelling and analysis

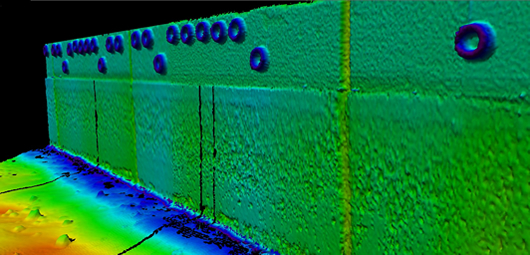

Customizable to vertical or sloped surfaces as coordinate referencing systems to create these raster surfaces to create a vertical or inclined surfaces.

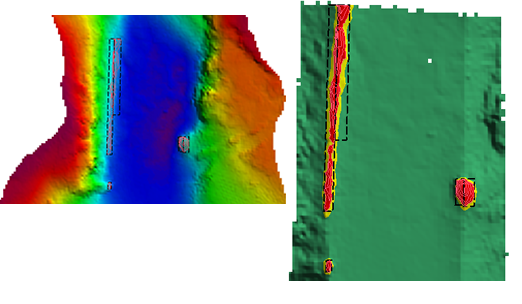

Areas where bathymetry is above the model are marked, with additional areas created at every user-specified step above the model. These areas are covered by minimum bounding boxes, which can be automatically and manually merged to ensure the number of publications meets the project needs.

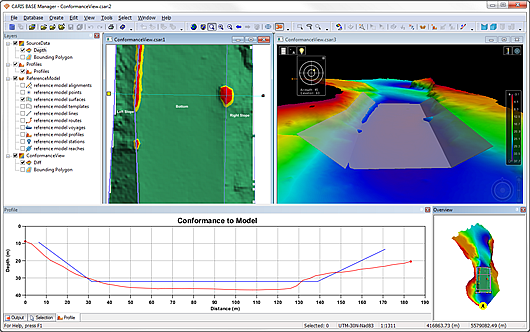

Analyze the conformance of the depth by comparing the bathymetric data to a certain depth. Tools will color which area doesn't meet the depth requirement to allow for fast decision-making.
Calculating the amount of material above and below a model is a vital part of maintenance. Four types of computations are provided to suit varied needs. All of these calculations work with 3D models or at a fixed depth, with an optional allowance below the model.
Analysis of vertical model

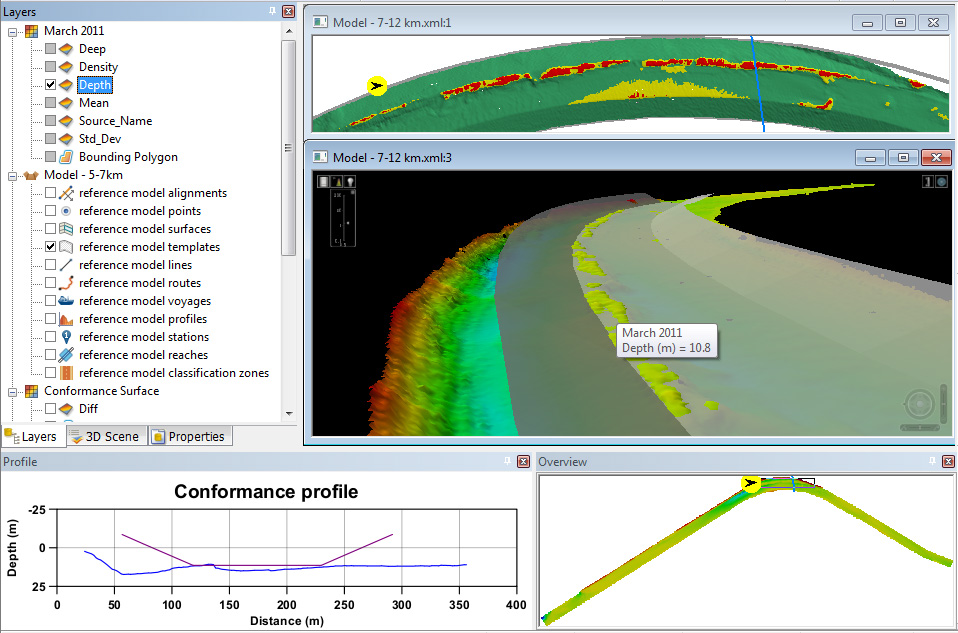

Existing tools such as differencing raster surfaces or viewing profile can be applied over vertical or inclined reference surface.

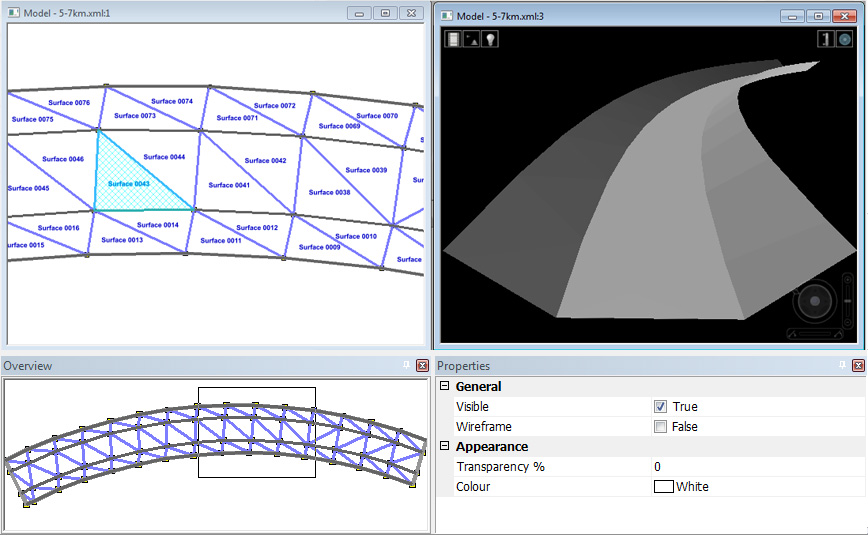

In addition to supporting the open LandXML specification, the Engineering Analysis Module provides tools to create a 3D model of the maintained area with the reference model editing functionality in BASE Editor.
Validate, analyze, and compile datasets in a variety of formats and from multiple new and historical sources.
OpenGL 3.3 compatible display adapter supporting 1,024 x 768 display resolution with true color
Windows® 10 Professional 64-bit
The latest version of the software requires a video card that fully supports OpenGL with a recommended 512MB of RAM, we advise against the use of onboard video cards as some functionality issues have been observed.
